P60NS Front 6 piston and P40NS-R Rear 4 piston caliper with E-brake caliper BBK brake system For BMW 3 series 18 inch rim
P40NS-R
| Product Type | P60NS Front Brake Kit |
| Piston Quality | 6 Piston |
| Piston Area | 52.41 cm2 |
| Piston Material | Alumium Alloy |
| Caliper Weight | 3.96 KG/pcs |
| Caliper Material | Aerial |
| Manufacuring Craft | By Forging+CNC |
| Color Finish Treatment | High-temperature Baking Coating |
| Optional Colors | Red/Yellow/Sliver/Customized as required |
| Fitting Wheel Size | 18/19/20 Inch |
| Fitting Disc Size | 355/378*32 mm |
| Brake Disc Rotor(Disc+Center Hub) |
| Disc Material | High-Carbon Iron |
| Disc Craft | By casting |
| Plane Bounce | <0.03 mm |
| Center Hub Material | Aerial aluminum alloy |
| Center Hub Craft | By CNC manufacturing |
| Center Hub Color | Black/Sliver or Customized as required |
| Adapter+Brake line+Brake pads |
| Adapter Material | Aerial aluminum alloy |
| Adapter Craft | By CNC manufacturing |
| Adapter Color | Black/Sliver/Customized |
| Brake Pad Material | Ceramic+Graphite |
| Brake Pad Friction Coefficient | 0.38-0.43(ceramic)/0.42-0.48(ceramic) |
| Brake Pad Size | 190X 87.5 X 16.6 mm |
| Brakeline Material | Steel wire outside and special rubber inside |
| Heat-Resistant | 700 Degree |
P40NS-R
The BMW 3 Series once again sets new standards for its class, reaching new heights in aesthetic design, engineering design,
high-tech content, luxury, comfort and safety.
On the evening of June 22, 2019, the new generation of BMW Brilliance 3 Series was officially launched in Tianjin. The new car only launched the 325 model, including a total of 6 models including the standard wheelbase version and the long wheelbase version.
In terms of appearance, the domestically produced new 3 Series basically follows the design style of the overseas version of the new 3 Series. The sharp LED headlights are connected to the enlarged bright black double kidney grille, matched with the front surround air intake and three-dimensional lines.
The all-new 3 Series Li features a newly designed Hofmeister corner at the C-pillar, eliminating the "small tail" design found on the current long-wheelbase model. Dimensionally, the all-new 3 Series Li is larger than the current long-wheelbase model. Furthermore, the wheelbase of the new long-wheelbase model has been significantly increased by 110mm compared to the overseas model.
At the rear, the new car adopts a straight and sharp taillight group outline, with an L-shaped red light strip inside. At the same time, the M kit version also has a color-separated black trim and ventilation holes on both sides, with a small spoiler and a dual exhaust layout.
The all-new BMW 3 Series Long Wheelbase is powered by the new B-series 2.0T engine (model B48B20B), producing the same 184 horsepower as the current 320i/Li, but now bears the 325Li badge. It remains mated to an 8-speed automatic transmission. Simultaneously, efforts have been made to optimize lightweighting, thermal management, and fuel efficiency to ensure optimal power output. Furthermore, the new car maintains a 50:50 weight distribution.

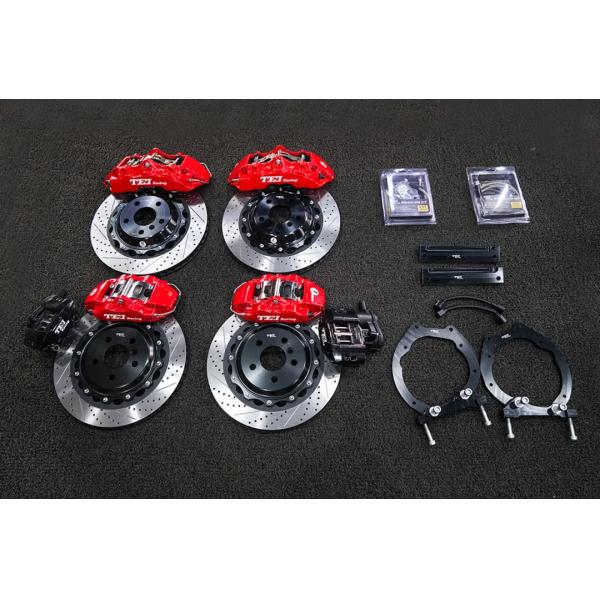

1 Full kit included
2 x Calipers
2 x Discs
2 x Brake Lines
4 x Brake Pads
2 x Adapters( Brackets)
Hardwares
